RIB® Track Mount Relay RIBMNH1S / 2.75" / 15A / SPST / 10-30VAC / DC / 208-277VAC / Override

Original price was: $23.25.Current price is: $16.28.

SKU: RIB WBB1034290 Categories: Relays, Relays & Sequencers, Wiring Devices Tags: -30° To 140°F, 1, 10 Million Cycles Minimum Mechanical, 15 A, 5 To 95 Percent (Noncondensing), Lighting & Electrical, RIB, SPST

The quality solution for all your needs.
Online assistance, always just a message away.
Free Shipping Worldwide
We take quality seriously.

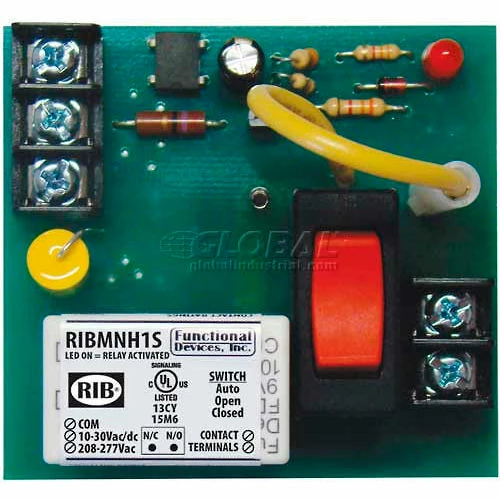

RIB® Track Mount Relay RIBMNH1S, 2.75″, 15A, SPST, 10-30VAC/DC/208-277VAC, Override

The Pilot Series contains relays that are rated at 10 or 15 Amps. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.

Wire Size	16 in
Includes	Override
Warranty	1 yr
Brand	RIB
Wire Rating	600V
Manufacturers Part Number	RIBMNH1S
Description	Track Mount Relay
Voltage	10-30VAC/DC 208-277VAC V
Expected Relay Life	10 Million Cycles Minimum Mechanical
Height	1.75 in
Operating Temperature	-30° To 140°F
Contact Type	SPST
Humidity Range	5 To 95 Percent (Noncondensing)
Amperage	15 A
Number of Relays	1
Width	2.75 in
Length	2.5 in
Certifications	UL Listed
