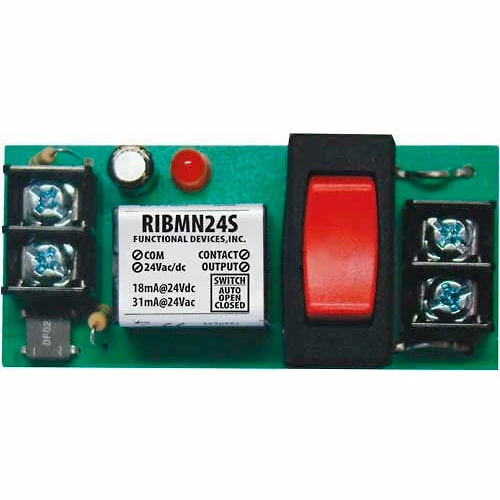

RIB® Track Mount Relay RIBMN24S, 2.75", 15A, SPST, 24VAC/DC, Override
Original price was: $15.00.$10.50Current price is: $10.50.
- The quality solution for all your needs.
- Online assistance, always just a message away.
- Free Shipping Worldwide
- We take quality seriously.
The Pilot Series contains relays that are rated at 10 or 15 Amps. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.
| Wire Size | 16 in |
|---|---|
| Voltage | 24VAC/DC V |
| Warranty | 1 yr |
| Brand | RIB |
| Wire Rating | 600V |
| Manufacturers Part Number | RIBMN24S |
| Description | Track Mount Relay |
| Includes | Override |
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Height | 1.75 in |
| Contact Type | SPST |
| Operating Temperature | -30° To 140°F |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Amperage | 15 A |
| Number of Relays | 1 |
| Width | 2.75 in |
| Length | 1.1 in |
| Certifications | UL Listed |
