The optoisolated series of relays may be used when the controller does not have sufficient coil drive power available to energize a relay of the desired contact rating. The power to energize the relay can be brought to the relay on a separate pair of wires along with the control output of the controller, or can be a local power source near the relay.

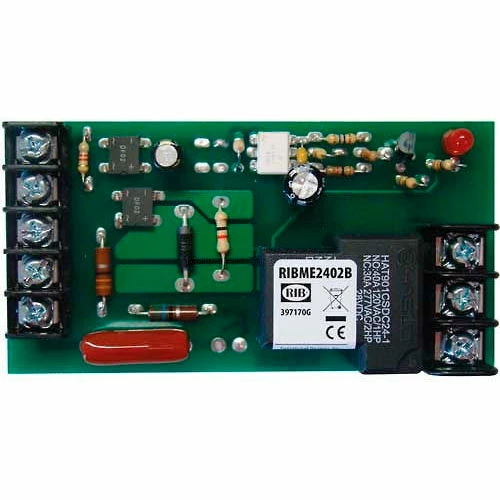

RIB® Panel Relay RIBME2402B, 4"x2.05", 20A, SPDT, 24VAC/DC/208-277VAC Power, 5-30VAC/DC Control
$27.95 Original price was: $27.95.$19.57Current price is: $19.57.
SKU: RIB WBB1034429 Categories: Relays, Relays & Sequencers, Wiring Devices Tags: -30° To 140°F, 1, 10 Million Cycles Minimum Mechanical, 20 A, 5 To 95 Percent (Noncondensing), Lighting & Electrical, RIB, SPDT
- The quality solution for all your needs.
- Online assistance, always just a message away.
- Free Shipping Worldwide
- We take quality seriously.

RIB® Panel Relay RIBME2402B, 4″x2.05″, 20A, SPDT, 24VAC/DC/208-277VAC Power, 5-30VAC/DC Control
| Wire Size | 16 in |
|---|---|
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Warranty | 1 yr |
| Brand | RIB |
| Wire Rating | 600V |
| Manufacturers Part Number | RIBME2402B |
| Description | Panel Relay |
| Voltage | 24VAC/DC 208-277VAC V |
| Operating Temperature | -30° To 140°F |
| Height | 1.75 in |
| Contact Type | SPDT |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Amperage | 20 A |
| Number of Relays | 1 |
| Width | 4 in |
| Length | 2.05 in |
| Certifications | UL Listed |
Be the first to review “RIB® Panel Relay RIBME2402B, 4"x2.05", 20A, SPDT, 24VAC/DC/208-277VAC Power, 5-30VAC/DC Control” Cancel reply
