These Current Sensor / Relay combination units control and sense up to 20 Amp loads, without the use of an external current ring, greatly reducing installation time. Models are available with fixed, or adjustable current sensing trigger points, or with voltage out.

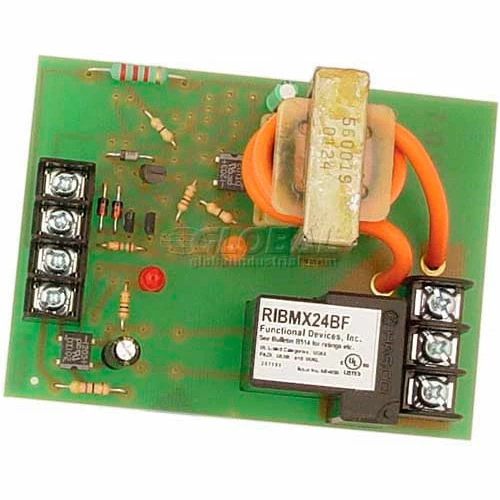

RIB® Panel Internal Current Transducer W/Relay RIBMX24BF, 4", Fixed, 20A, SPDT, 24VAC/DC
$46.95 Original price was: $46.95.$32.87Current price is: $32.87.
- The quality solution for all your needs.
- Online assistance, always just a message away.
- Free Shipping Worldwide
- We take quality seriously.

| Height | 1.25 in |
|---|---|
| Length | 2.95 in |
| Width | 4 in |
| Number of Relays | 1 |
| Amperage | 20 A |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Contact Type | SPDT |
| Operating Temperature | -30° To 140°F |
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Threshold | Fixed |
| Voltage | 24VAC/DC V |
| Description | Panel Internal Current Transducer W/Relay |
| Manufacturers Part Number | RIBMX24BF |
| Brand | RIB |
| Warranty | 1 yr |
| Certifications | UL Listed |
Be the first to review “RIB® Panel Internal Current Transducer W/Relay RIBMX24BF, 4", Fixed, 20A, SPDT, 24VAC/DC” Cancel reply
