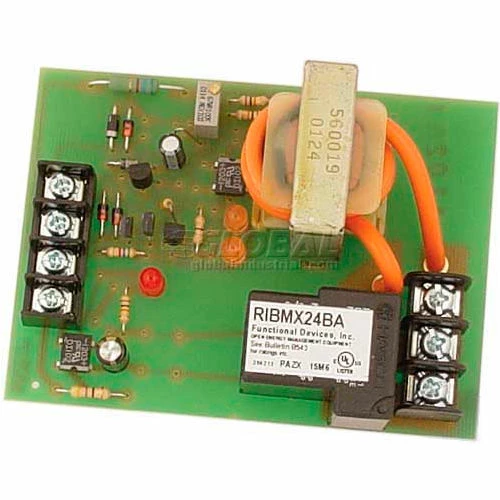

RIB® Panel Internal Current Sensor W/Relay RIBMX24BA, 4", Adj., P20A, SPDT, 24VAC/DC
Original price was: $45.95.$32.17Current price is: $32.17.
- The quality solution for all your needs.
- Online assistance, always just a message away.
- Free Shipping Worldwide
- We take quality seriously.
These Current Sensor / Relay combination units control and sense up to 20 Amp loads, without the use of an external current ring, greatly reducing installation time. Models are available with fixed, or adjustable current sensing trigger points, or with voltage out.
| Height | 1.25 in |
|---|---|
| Length | 2.95 in |
| Width | 4 in |
| Number of Relays | 1 |
| Amperage | 20 A |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Contact Type | SPDT |
| Operating Temperature | -30° To 140°F |
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Threshold | Adjustable |
| Voltage | 24VAC/DC V |
| Description | Panel Internal Current Sensor W/Relay |
| Manufacturers Part Number | RIBMX24BA |
| Brand | RIB |
| Warranty | 1 yr |
| Certifications | UL Listed |
