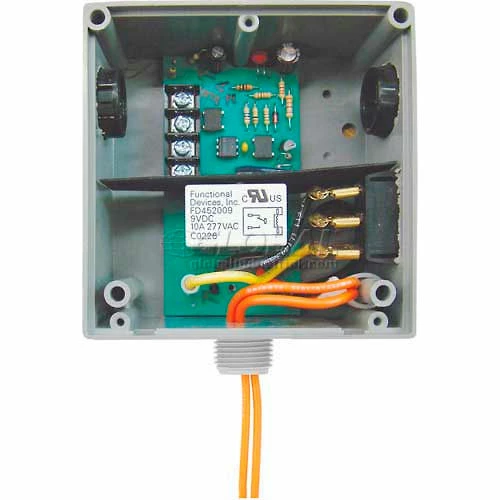

RIB® Enclosed Relay RIBTELS, Hi/Low Sep, 10A, SPST, 10-30VAC/DC Power, 5-30VAC/DC, Override
Original price was: $35.95.$25.17Current price is: $25.17.
- The quality solution for all your needs.
- Online assistance, always just a message away.
- Free Shipping Worldwide
- We take quality seriously.
The optoisolated series of relays may be used when the controller does not have sufficient coil drive power available to energize a relay of the desired contact rating. The power to energize the relay can be brought to the relay on a separate pair of wires along with the control output of the controller, or can be a local power source near the relay.
| Wire Size | 16 in |
|---|---|
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Warranty | 1 yr |
| Brand | RIB |
| Wire Rating | 600V |
| Manufacturers Part Number | RIBTELS |
| Description | Enclosed Relay W/Override |
| Voltage | 10-30VAC/DC V |
| Operating Temperature | -30° To 140°F |
| Height | 1.8 in |
| Contact Type | SPST |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Amperage | 10 A |
| Number of Relays | 1 |
| Width | 4 in |
| Length | 4 in |
| Certifications | UL Listed |
