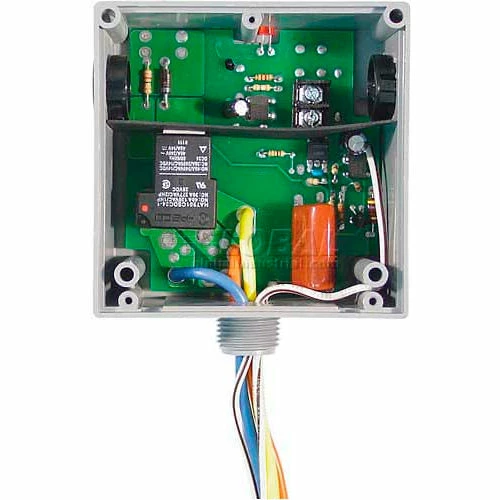

RIB® Enclosed Relay RIBTE02B, Hi/Low Sep, 20A, SPDT, 208-277VAC Power, 5-30VAC/DC Control
Original price was: $36.95.$25.87Current price is: $25.87.
- The quality solution for all your needs.
- Online assistance, always just a message away.
- Free Shipping Worldwide
- We take quality seriously.
The optoisolated series of relays may be used when the controller does not have sufficient coil drive power available to energize a relay of the desired contact rating. The power to energize the relay can be brought to the relay on a separate pair of wires along with the control output of the controller, or can be a local power source near the relay.
| Wire Size | 16 in |
|---|---|
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Warranty | 1 yr |
| Brand | RIB |
| Wire Rating | 600V |
| Manufacturers Part Number | RIBTE02B |
| Description | Enclosed Relay |
| Voltage | 208-277VAC/DC V |
| Operating Temperature | -30° To 140°F |
| Height | 1.8 in |
| Contact Type | SPDT |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Amperage | 20 A |
| Number of Relays | 1 |
| Width | 4 in |
| Length | 4 in |
| Certifications | UL Listed |
