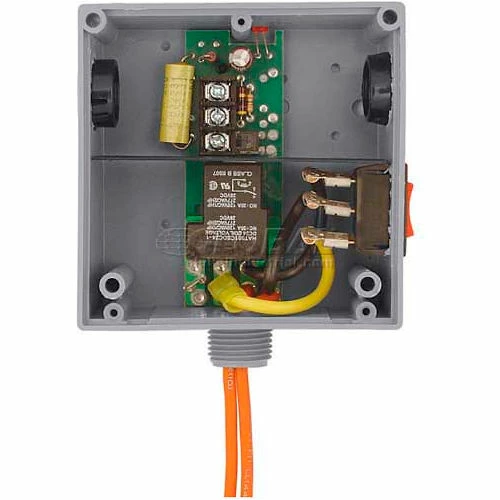

RIB® Enclosed Relay RIBT2401SB, Hi/Low Sep. 20A, SPST, 24VAC/DC/120VAC, Override
Original price was: $32.95.$23.07Current price is: $23.07.
- The quality solution for all your needs.
- Online assistance, always just a message away.
- Free Shipping Worldwide
- We take quality seriously.
The Power Series contains relays that are rated at 20 or 30 Amp. They have been packaged to save the installer the time, trouble and expense of buying separate components (relay, LED indicator, socket, mounting rail, transient protection and housing) and assembling them on the job or at the shop.
| Wire Size | 16 in |
|---|---|
| Expected Relay Life | 10 Million Cycles Minimum Mechanical |
| Warranty | 1 yr |
| Brand | RIB |
| Wire Rating | 600V |
| Manufacturers Part Number | RIBT2401SB |
| Description | Enclosed Relay W/Override |
| Voltage | 24VAC/DC/120VAC V |
| Operating Temperature | -30° To 140°F |
| Height | 1.8 in |
| Contact Type | SPST |
| Humidity Range | 5 To 95 Percent (Noncondensing) |
| Amperage | 20 A |
| Number of Relays | 1 |
| Width | 4 in |
| Length | 4 in |
| Certifications | UL Listed |
