RIB® Enclosed Polarized Relay RIB12S-FA-NC, 10A, SPST, 12VAC/VDC, NC Contacts, Override Switch

Original price was: $23.00.Current price is: $16.10.

SKU: RIB WBB1034465 Categories: Relays, Relays & Sequencers, Wiring Devices Tags: -30° To 140°F, 1, 10 A, 10 Million Cycles Minimum Mechanical, 5 To 95 Percent (Noncondensing), Lighting & Electrical, RIB, SPST-N/C

The quality solution for all your needs.
Online assistance, always just a message away.
Free Shipping Worldwide
We take quality seriously.

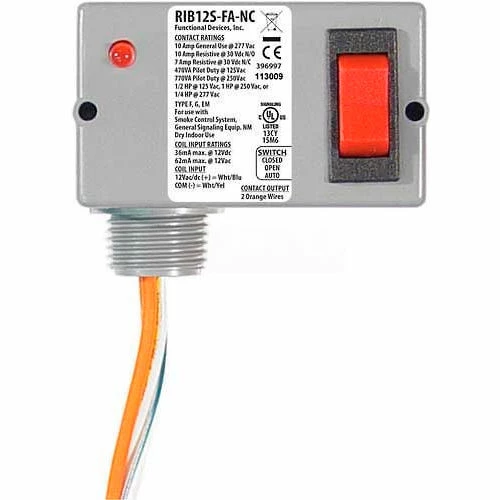

RIB® Enclosed Polarized Relay RIB12S-FA-NC, 10A, SPST, 12VAC/VDC, NC Contacts, Override Switch

The Polarized RIB series is equivalent to the standard RIB series except for the coil which is polarized. We are currently offering nine polarized relays, most of which have a similar non-polarized counterpart. The “FA” in the model name stands for Fire Alarm. These relays are designed for operation in systems that require supervision from controllers and utilize end-of-line resistors. The relay can also be operated from A/C voltage (non-polarized) if desired.

Wire Size	16 in
Includes	Override Switch
Warranty	1 yr
Brand	RIB
Wire Rating	600V
Manufacturers Part Number	RIB12S-FA-NC
Description	Enclosed Polarized Relay
Voltage	12VAC/DC V
Expected Relay Life	10 Million Cycles Minimum Mechanical
Height	1.5 in
Operating Temperature	-30° To 140°F
Contact Type	SPST-N/C
Humidity Range	5 To 95 Percent (Noncondensing)
Amperage	10 A
Number of Relays	1
Width	2.8 in
Length	1.7 in
Certifications	UL Listed
