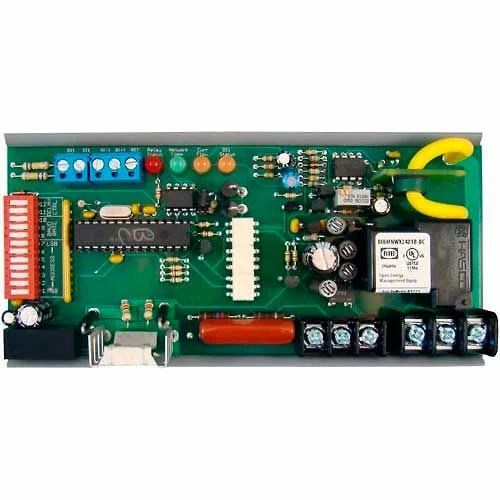

RIB® BacNet Panel Relay RIBMNWX2401B-BC, 2.75", 20A, 120VAC/24VAC/DC, Current Sensor

Original price was: $133.95.Current price is: $97.99.

SKU: RIB WBB1034219 Categories: Relays, Relays & Sequencers, Wiring Devices Tags: -30° To 140°F, 1, 10 Million Cycles Minimum Mechanical, 20 A, 5 To 95 Percent (Noncondensing), Lighting & Electrical, RIB, SPDT

The quality solution for all your needs.
Online assistance, always just a message away.
Free Shipping Worldwide
We take quality seriously.

RIB® BacNet Panel Relay RIBMNWX2401B-BC, 2.75″, 20A, 120VAC/24VAC/DC, Current Sensor

RIB® BACnet, LonWorks, and Ethernet Network Compatible Devices can be hard wired and used instead of more expensive multi-output controllers when a few more control points are needed, and large controllers are too much for the job. They can also be used when control points are widely spread throughout the job site. These devices have been prepackaged to save the installer the time, trouble, and expense of buying separate components and assembling them on the job. Functional Devices also offers WiFi, Zigbee, AIC, and EnOcean WIRELESS Network Compatible Devices that can act singly as a (LCS) load control switch or as part of a larger network.

Wire Size	16 in
Includes	Current Sensor
Warranty	1 yr
Brand	RIB
Wire Rating	600V
Manufacturers Part Number	RIBMNWX2401B-BC
Description	BacNet Panel Relay
Voltage	24VAC/DC 120VAC V
Expected Relay Life	10 Million Cycles Minimum Mechanical
Height	1.75 in
Operating Temperature	-30° To 140°F
Contact Type	SPDT
Humidity Range	5 To 95 Percent (Noncondensing)
Amperage	20 A
Number of Relays	1
Width	2.75 in
Length	6 in
Certifications	UL Listed
