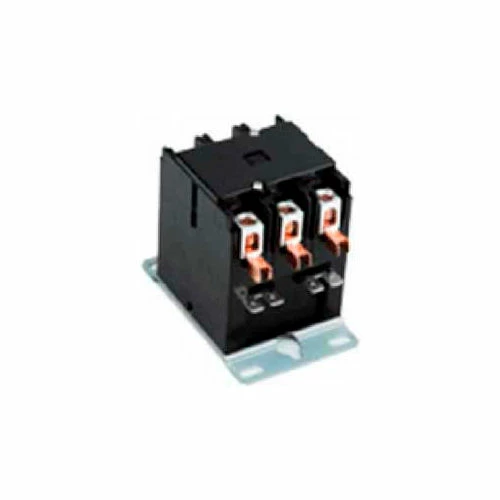

Advanced Controls Advance Controls 135636, Definite Purpose Contactors, DPA Series, 25 Amp, 3 Pole, Coil 120VAC

Original price was: $26.95.Current price is: $18.87.

SKU: Advanced Controls WBB713939 Categories: Contactors, Wiring Devices Tags: 100 A, 20 HP, 35 A, Advanced Controls, DPA, Lighting & Electrical, SA-3P-25A

The quality solution for all your needs.
Online assistance, always just a message away.
Free Shipping Worldwide
We take quality seriously.

Definite Purpose Contactors, DPA Series, 25 Amp, 3 Pole, Coil 120VAC

ACI Definite Purpose Contactors are designed to be used in many common HVAC, Refrigeration, Food Service Equipment and many other applications. Universal design allows replacement of the most common brands. These contactors are available in 1.5, 2, 3 & 4 pole configurations from 20 through 90 Full Load Amps.

Screw Style Terminal with 1/4 Connectors (Wt)	1 lbs
Power Poles	3
Coil Voltage	120 V
Air Conditioning FLA	25 FLA
Max Horsepower 1 Phase 240/277V	3 HP
Manufacturers Part Number	135636
Air Conditioning Locked Rotor Amps (480)	125 A
Air Conditioning Locked Rotor Amps (240/277)	150 A
Max Horsepower 1 Phase 480V	15 HP
Air Conditioning Locked Rotor Amps (600)	100 A
Number of Poles	3
Contactor Type	SA-3P-25A
Air Heating Resistive Amps	35 A
Resistive Amps	35 A
Max Horsepower 1 Phase 600V	20 HP
Series	DPA
Brand	Advanced Controls
